Low-Carbon Rigid Revetment Method Using Stone and Wood

Product Introduction

STONE MATTRESS

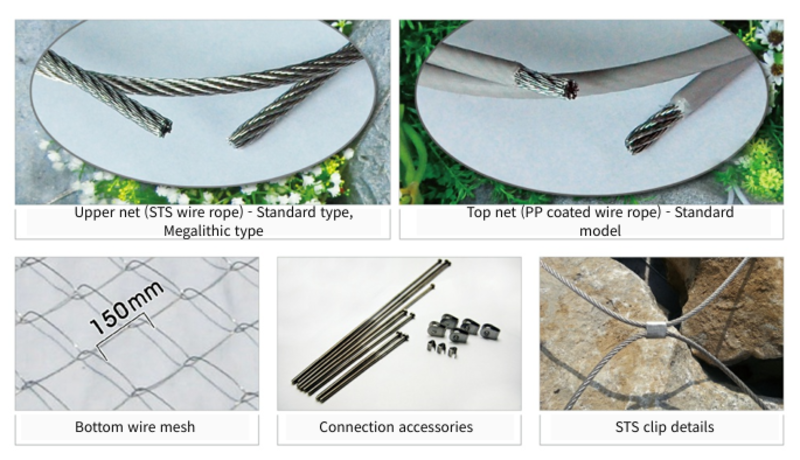

  Material photo

  상세 규격 및 사양

Product NameStandard SpecificationWeightStone Size
Standard TypeBase Mesh (Galvanized) Φ4㎜, Mesh Spacing 150㎜ Top Mesh (STS Wire) Φ3㎜, Mesh Spacing 250㎜300kg/㎡Φ250~350㎜
Large Stone TypeBase Mesh (Galvanized) Φ4㎜, Mesh Spacing 150㎜ Top Mesh (STS Wire) Φ4㎜, Mesh Spacing 350㎜500kg/㎡Φ450~550㎜
Economy TypeBase Mesh (Galvanized) Φ3.5㎜, Mesh Spacing 150㎜ Top Mesh (Coated Wire) Φ4㎜, Mesh Spacing 250㎜300kg/㎡Φ250~350㎜
DescriptionMaterialSpecificationRemarks
Riprap / Cobble Stone / Processed StoneVarious (Granite, Basalt, etc.)Colors vary by regionStone Strength: Over 500kg/cm²
STS Wire Seed RopeStainless Steel4~7mm, Wire Ø2.4, 3mm, Mesh Spacing 260mm
Standard / Large Stone Type
Coated Wire Seed RopeSteel Wire + PP Coating4㎜, Mesh Spacing 250㎜
Economy Type
Base MeshGalvanized WireΦ4㎜, Mesh Spacing 150㎜ / Φ3.5㎜, Mesh Spacing 150㎜
Standard, Large / Economy Type
Fixing PinGalvanized / Stainless SteelØ6mm
Fixing ClipGalvanized / Stainless SteelT=1.5mm (Galvanized) / T=1.2mm (Stainless)
