Low-Carbon Rigid Revetment Method Using Stone and Wood

Product Introduction

ECO-NET MATTRESS

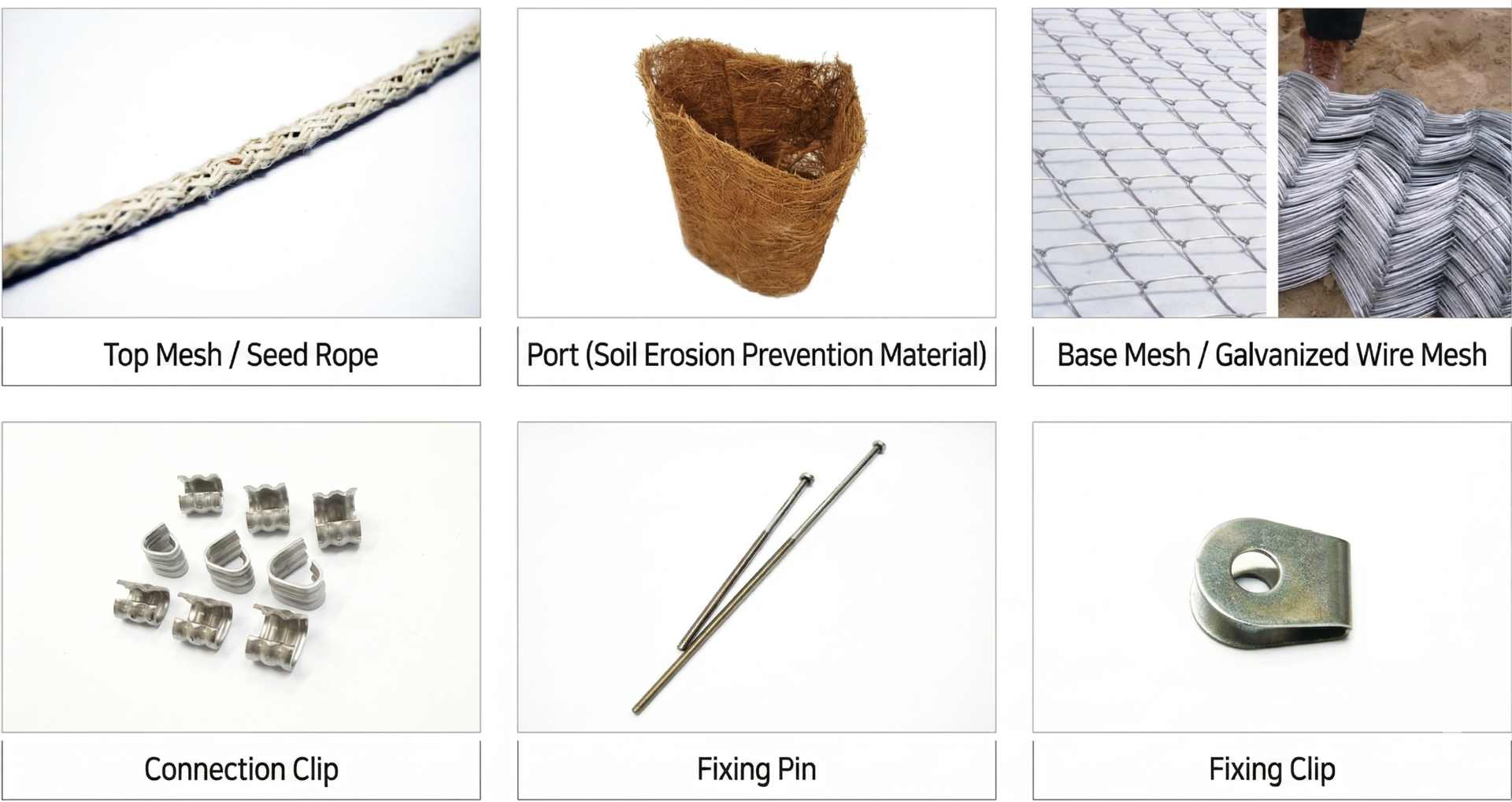

  Material photo

  Detailed specifications and specifications

Product NameStandard SpecificationWeightStone Size
Basic TypeBase Mesh (Galvanized) Φ4㎜, Mesh Spacing 150㎜, Top Mesh (STS Wire Seed Rope) Φ4~5㎜, Wire 2.4㎜, Mesh Spacing 260㎜300kg/㎡Φ250~350㎜
Standard TypeBase Mesh (Galvanized) Φ4㎜, Mesh Spacing 150㎜, Top Mesh (STS Wire Seed Rope) Φ4~5㎜, Wire 3.0㎜, Mesh Spacing 260㎜400kg/㎡Φ350~450㎜
Economy TypeBase Mesh (Galvanized) Φ3.5㎜, Mesh Spacing 150㎜, Top Mesh (STS Wire Seed Rope) Φ5~7㎜, Wire 4㎜, Mesh Spacing 260㎜300kg/㎡Φ250~350㎜
DescriptionMaterialSpecificationRemarks
Riprap / Cobble Stone / Processed StoneVarious (Granite, Basalt, etc.)Colors vary by regionStone Strength: Over 500kg/cm²
STS Wire Seed RopeCoated Wire Seed Rope4~7mm, Wire Ø2.4, 3mm, Mesh Spacing 260mm
Coated Wire Seed RopeCotton Yarn / Coated Wire5~7mm, Wire Ø4mm, Mesh Spacing 260mm
Base MeshGalvanized Wire3.5, 4mm, Mesh Spacing 150mm
Fixing PinGalvanized / Stainless SteelØ6mm
Fixing ClipGalvanized / Stainless SteelT=1.5mm (Galvanized) / T=1.2mm (Stainless)
Port (Soil Erosion Prevention)Coir MatØ130mm x H200mm
